Description

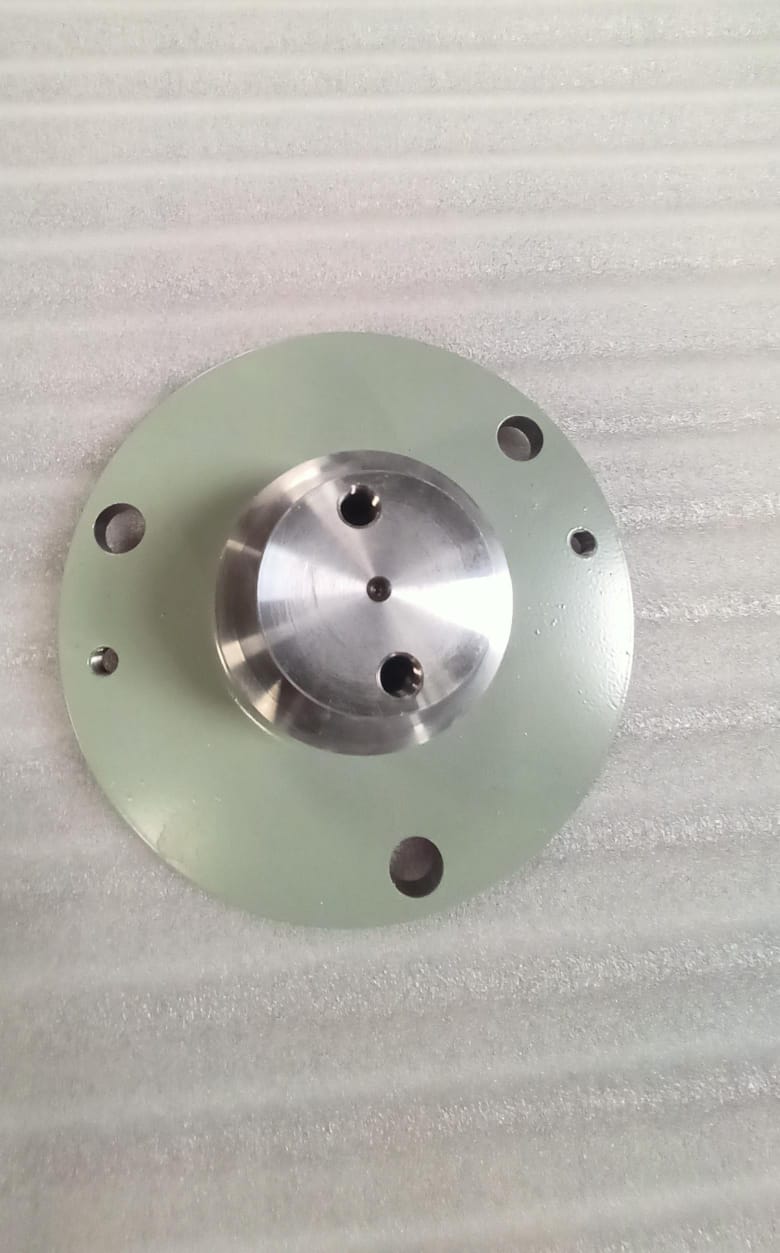

The Forged and Machined Journal 22 is a high-precision, low-profile component featuring a compact machined hub and a robust integrated flange. Engineered for maximum structural density through industrial forging, it provides exceptional load distribution and vibration resistance in space-constrained, high-torque rotary assemblies.
Specifications
| Attribute | Value |
|---|---|
| Material | Forged High-Tensile Steel |
| Type | Compact Low-Profile Journal |
| Design | Machined central hub with integrated flange |
| Mounting | Multi-hole asymmetrical bolt pattern |
| Process | Precision forging & CNC machining |
| Finish | Polished hub interface with industrial-coated base |
| Precision | High-tolerance alignment |
| Function | High-torque coupling and rotary support |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Trade Details
| Production Lead Time | 4-7 Days |
| Available Stock | In Stock |
| Production Capacity | 1 pieces/ monthly |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | ||
| Dispatch Lead time | Ships in 7 Days |
Company Profile
₹1 Crore – ₹5 Crore
Factory Details
Main Markets
Frequently Asked Questions
1. What is the main function of Journal 22?
It serves as a high-strength, low-profile mounting interface and pivot point for high-torque rotating assemblies.
2. Why is the design compact?
The low-profile hub is engineered for space-constrained environments where a full-length shaft is not required for torque transmission.
3. What makes the flange unique?
It features an integrated multi-hole pattern that ensures precise alignment and maximum vibration resistance under heavy radial loads.
4. How is the durability ensured?
Industrial forging creates a dense grain structure that prevents fatigue and cracks, outperforming standard cast or machined-from-bar components.
5. Is the hub surface treated?
Yes, the central hub is CNC-polished for smooth component interfacing, while the flange is industrial-coated to prevent corrosion.
Forged and Machined Journal 22
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
