Description

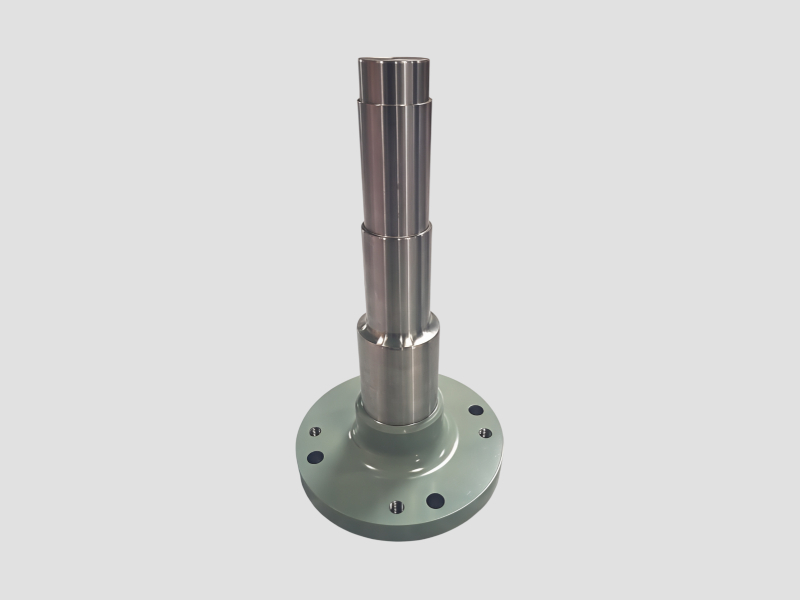

The Forged and Machined Journal 16 is a high-strength, three-stage stepped shaft featuring an integrated flanged base. Precision-forged and CNC-finished, it is designed for heavy-load bearing support and high-torque stability in industrial rotating assemblies.
Specifications
| Attribute | Value |
|---|---|
| Material | Forged Alloy Steel |
| Type | 3-Stage Stepped Shaft |
| Profile | Precision-tapered cylindrical sections |
| Base | Integrated flanged mounting |
| Process | Forging + CNC Machined |
| Holes | Multi-point bolt interface |
| Precision | High-tolerance fitment |
| Use | Load-bearing rotary support |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Power Transmission: Primary shafts for industrial gearboxes.
Agri-Machinery: Drive components for tillers and harvesters.
Heavy Industry: Rotary supports for conveyors and kilns.
Automotive: Main axle journals for heavy-duty trailers.
Trade Details
| Production Lead Time | 4-7 Days |
| Available Stock | In Stock |
| Production Capacity | 1 pieces/ monthly |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | ||
| Dispatch Lead time | Ships in 7 Days |
Company Profile
Surya Machine Works, Tamil Nadu
12 yrs
Manufacturer
Turn Over
₹1 Crore – ₹5 Crore
Factory Details
Factory SizeAbove 5000 sqm
Main Markets
India
Frequently Asked Questions
1
1. What is the primary function of Journal 16?
It serves as a high-load rotating axis for power transmission and heavy-duty mechanical assemblies.
2
2. Why does it have a three-stage stepped design?
The varying diameters allow for the precise, sequential mounting of multiple bearings, seals, and gears on a single shaft.
3
3. How is the base secured?
The integrated heavy-duty flange features a multi-hole pattern for high-torque, vibration-resistant bolting to machinery housings.
4
4. What are the benefits of the forged construction?
Forging provides superior grain flow and structural density, ensuring the shaft can handle extreme stress without fatigue or cracking.
5
5. Is it compatible with CNC-machined components?
Yes, the shaft is finished to high tolerances to ensure a seamless, friction-reduced fit with precision industrial bearings and couplings.
SKU: 1
Forged and Machined Journal 16
A high-strength forged journal featuring a precision-machined, three-stage stepped shaft and an integrated flanged base. Engineered for high-load stability and seamless component integration in industrial rotating systems.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
Surya Machine Works
Tamil Nadu, India
Manufacturer
