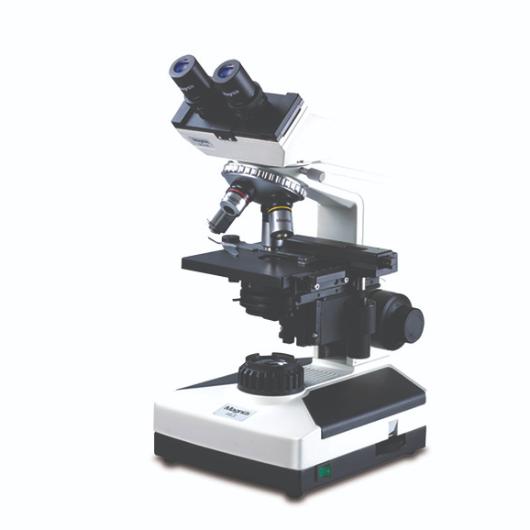

The MLX B Microscope by Magnus is a high-quality, student-friendly binocular microscope used for clear and detailed viewing of slides. It is designed with coated optics, coarse and fine focus, and LED illumination, making it reliable for regular lab.
WF 10x (FN 18mm) paired eyepiece. The unique optical design of the compensated wide-field images of utmost
Nosepiece :
Quadruple revolving nosepiece based on precision ball-bearing mechanism with positive stop click.
Condenser :
Abbe condenser with aperture iris diaphragm (N.A. 1.25)focusable with rack & pinion through 20mm and a continuously variable iris diaphragm with a removable blue filter for daylight observation. Rack & piion mounted condenser holder.
Focusing :
Co-axial coarse & fine controls with a focus adjustment and fine adjustment knobs. Coarse Focus range 25mm.
Illumination base with option :
Built-in-illumination base with pre-centered 6V 20W halogen light source coupled with an efficient collector lens system. Universal Power supply 100V-240V AC 50Hz (SMPS).Suppliedwith one spare bulb & spare fuse. Easily replaceable lamp from front.
Illumination base with option :
LED light source High brightness, long life(30000 hrs)
Illumination base with option :
LED light source (with battery backup) High brightness, long life (30000 hrs). Battery backup in-built NiMH Rechargeable batteries provide 6-8 hours back-up on full charge
