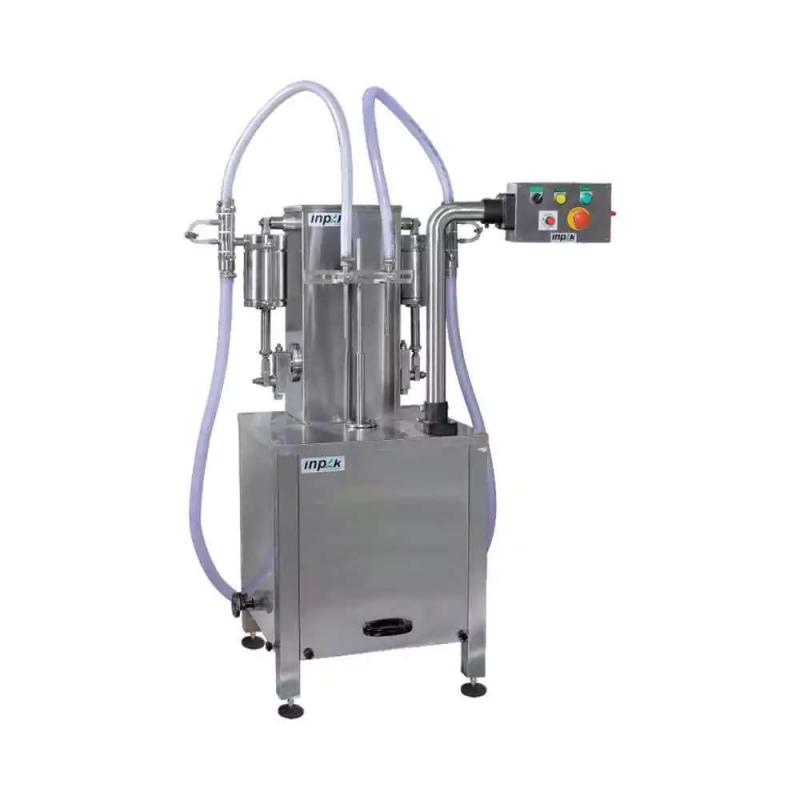

Enhanced liquid dispensing system built to handle a wide range of liquid viscosities with exceptional accuracy and speed. Ideal for growing manufacturers, this machine is perfect for food, cosmetics, pharmaceutical, and chemical industries
06 to 20 FPM Depends of the operator speed of fill volume and nature flow of Liquid
Power Characteristics :
240v 1 Phase 50Hz 3 Wire System
Air :
5 to 6 cfm (Customer scope)
Filling System :
Piston filling with pneumatic and L port ball valve
Fill Range :
500 ml, 1000 ml with half of change parts
Filling Accuracy :
± .5 to 1 % Filling accuracy on single dose Depends of the nature of liquid
Tank Storage Capacity :
Overhead tank of 20 to 35 lit. Capacity
Machine Construction :
Stainless steel SS-304 or SS-316 (optional)
Net Weight :
280 kgs
Machine Length :
640mm X 755mm X 1600mm
Technical Specifications
Volumetric Liquid Filling system & Nozzle driving System
It is widely used for batter filling and optional of milk, oil, oinment, shampoo, juice, liquor, perfume, wine, food product filling – in Bag, Jar, Can, vial, Bottle, Tub & any Containers.
The unit can be quickly dismantled for the maintenance just by opening front cover
Easy way to clean
Each and every part can be attended for cleaning operation of manitenance without any hindrance
S.S 304 elegantly matt finished body
A unit to fill variety of Liquid and can be used for various type bag or containers.
