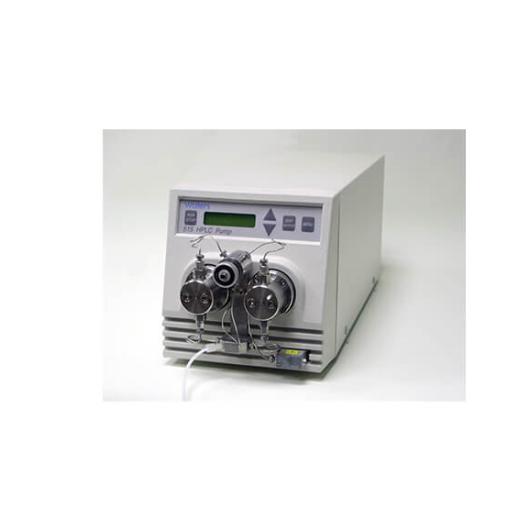

Liquid Chromatography - HPLC 515

Product manufactured In:

India

Range :

0.000 – 10.000 mL/min., in 0.001 mL/min increments,standard 100 µL heads

Flow Precision :

£ 0.1% RSD or two seconds SD, six replicates,based on rentention time or volumetric measures,at mL/min, 1,000 – 2000 psi backpressure Compressibility

Compensation :

Programmable

Flow Clibration :

Programmable

Function :

Pre Programmed, user intiated

Maximum Operating pressure :

6,000 psi (41,370 kPa, 401 bar)

Operating Pressure Limits :

Programmable high and low pressure limits User selectable in psi,kPa, bar

Pressure Ripple :

£ 2.0 % (1 mL/min, degassed methanol, 1,000 psi backpressure)

Plunger Guiding System :

Floating, self- aligning mount

System :

Floating, self-aligning mount

Primary Wetted Surface Materials :

316 stainless steel, sapphire, reinforced fluorocarbon polymer seals.

Physical Size (W x H x D) :

7.5” (19.1cm) x 8.0” (20.3) x 18.5” (47 cm)

Weight :

33 Ib (15 kg)

Voltage range :

85 to 264 VAC

Frequency :

47 to 63 Hz, single phase
