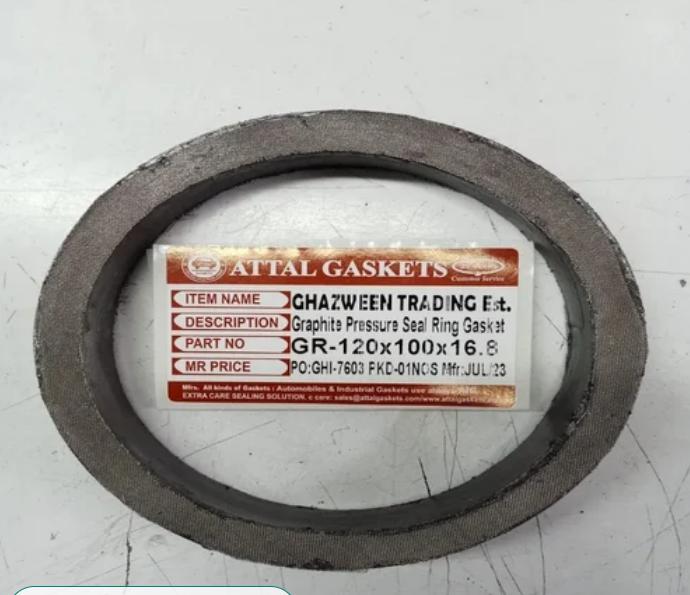

Graphite pressure seal gasket

Additional Details

Graphite Pressure Seal Gaskets are engineered for extreme temperature and pressure environments. Manufactured from high-purity expanded graphite, these gaskets offer superior sealing, thermal conductivity, chemical resistance, and mechanical strength.

These gaskets are ideal for critical applications in valves, pumps, steam lines, and process vessels. They conform easily to flange surfaces and maintain sealing integrity even under fluctuating conditions.

Our gaskets are precision-cut as per ANSI/ASME standards or can be customized based on client drawings and application needs.

Technical Specifications

• Material Type: Expanded/Compressed Graphite

• Temperature Resistance: Up to 550°C

• Pressure Capacity: Up to 250 bar

• Compressibility: ≥ 35%

• Recovery: ≥ 15%

• Density: 1.0 to 1.3 g/cm³

• Standard Compliance: ANSI B16.21 / DIN / Custom specs

Applications

• High-pressure valve and flange sealing

• Steam turbine and boiler gaskets

• Refineries and petrochemical plants

• Power generation equipment

• Nuclear, thermal, and hydro plant equipment

• Industrial fluid control systems
