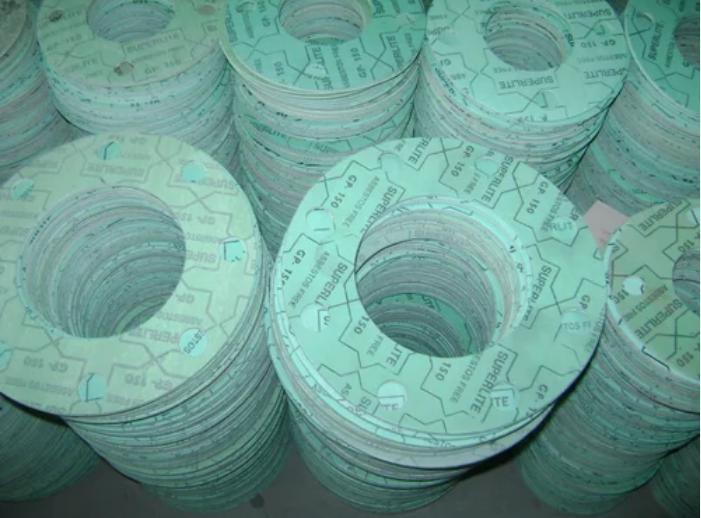

Non Asbestos Flange Gasket

Additional Details

AIG’s Non-Asbestos Flange Gaskets are specially designed for industrial sealing applications where safety and performance are crucial. These gaskets are made from Compressed Non-Asbestos Fibre (CNAF), which offers excellent chemical and thermal resistance while complying with environmental standards by avoiding hazardous asbestos.

Features:

• Environmentally safe (Asbestos-Free)

• Excellent sealing performance

• High resistance to heat, oils, fuels, and solvents

• Long operational life

• Available in multiple thicknesses and dimensions

These gaskets are suitable for flanged connections in pipelines, valves, and pressure vessels and are widely used in the petrochemical, pharmaceutical, power generation, and general manufacturing industries.

Technical Specifications

• Material Type: CNAF (Compressed Non-Asbestos Fibre)

• Hardness: 65–75 Shore A

• Max Temperature: Up to 300°C

• Pressure Range: Up to 50 bar

• Thickness Range: 0.5 mm – 5 mm

• Available Shapes: Round, Full Face, Custom Cut

• Compliance: Meets IS/ASTM standards on request

Applications

• Piping and Flange Sealing

• Petrochemical and Oil Refineries

• Power Plants and Boilers

• HVAC Systems

• Water Treatment Units

• Process Equipment

• Marine and Automotive Sectors
