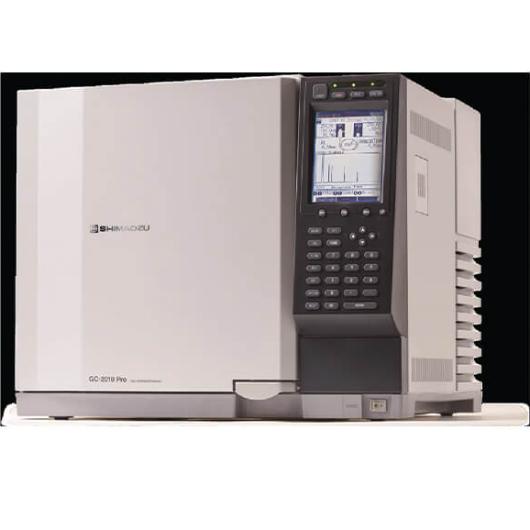

Gas Chromatography - 2010(SHIMADZU)

Product manufactured In:

India

Supply Ability:

7 per Day

High throughput :

Designed for fast analysis with narrow bore capillary columns, reducing analysis time and improving sample throughput

Advanced flow Control :

Provides precise and reproducible carrier gas flow and pressure control, essential for accurate retention times and peak areas.

Maximum pressure :

970 kPa

Maximum flow rate :

1200 Ml/MIN. Constant linear velocity mode is supported.

High-Performance Oven :

Ambient + 40C to 4500C with (optional : -500c to 4500C with liquid CO2)

Dimensions :

280 (W) x 280 (H) x 175 (D) mm

Volume :

13.7 L

Temperature accuracy :

Set value + 1% (calibrated at 0.010C)

Temperature Deviation :

Maximum (on a 200 mm diameter)

Temperature Program :

Up to 20 ramps (heating & cooling possible), with a programmed rate setting range of -250 to 2500C/min and a maximum total time of 9999.99 minutes. Rapid heating and cooling capabilities are incorporated.

Injection Units :

Up to two analytical lines can be installed, and various injection units are available.

Split/ Splitless Injector :

Standard configuration with high-performance AFC, supporting high-speed GC. Features a gas saver function and high-pressure injection mode.

Direct Injection Unit :

For wide –bore capillary columns (>0.45 mm), with a septum purge flow channel.

On-Column/Programmed Temperature Vaporizer (OCI/ PTV) :

Temperature programmable (room temperature + 50Cto 4500C),with heating rates up to 2500C/minute and cooling rates down to 500C in 8minutes.

Automation :

Compatible with the AOC – 20i Auto Injector and AOC-20s Autosampler, handling up to 150 vials for increased throughput. Dual injection systems can be configured.

User Interface :

Features a back-lit Lcd display for easy monitoring and control.

Software :

Gc solution software is compatible with windows and comprehensive instrument control, data acquisition, and analysis features, including various quantitation methods, calibration, and reporting.

Dimensions and Weight :

515 (W) x 440 (H) x 530 (D) mm, approximately 30 kg (for a single FID model)

Power Requirements :

AC100V/115V/230V + 10%, 1800VA(normal oven) or 2600VA (high-power oven), 50/60Hz.

:
