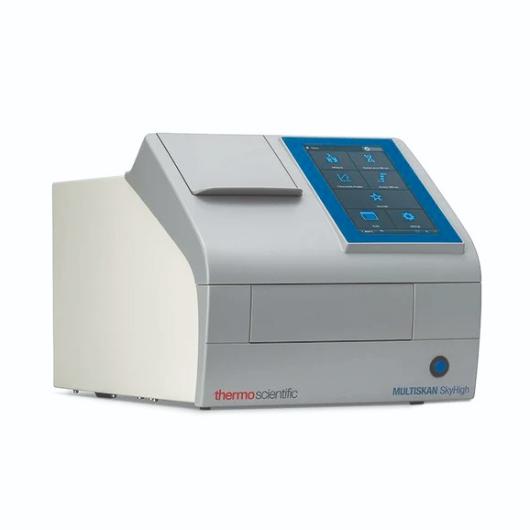

Elisa Reader

Product manufactured In:

India

Supply Ability:

7 per Day

Wavelength selection :

Monochromator

Light source :

Xenon flash lamp

Wavelength range :

200–1,000 nm with 1 nm steps

Readout range :

Up to 4 absorbance units

Bandwidth :

<2.5 nm

Linearity at 450 nm* :

0–2.5 Abs, 2%

Accuracy at 450 nm* :

1.0% + 0.003 Abs (0–2.0 Abs), 2.0% (2.0–2.5 Abs)

Precision at 450 nm* :

SD <0.003 Abs or CV <1.0%

Plates :

6- to 48-, 96-, and 384-well plates***, Thermo Scientific µDrop Plates

Cuvette :

Dimensions (H x W x D): 40–58 x 12.5 x 12.5 mm Beam center height: 8.5 mm Beam window: ≥2 mm

Measurement speed (starting from A1 back to A1) :

6 sec with 96-well plate 10 sec with 384-well plate

Plate shaking :

Linear

Spectral scanning speed :

10 sec from 200–1,000 nm with 1 nm steps

Incubation range :

From ambient temperature +2C to 45˚C”.

User interfaces :

Stand-alone use: 7 in. touchscreen display

Main input :

100–240 V (50/60 Hz)

Max power consumption :

<110 W

Power save consumption** :

7 W

Dimensions (H x W x D) :

265 x 295 x 445 mm (10.4 x 11.6 x 17.5 in.)

Weight :

True weight: 10.6 – 11.5 kg (23.4 – 25.3 lb), depending on the model
