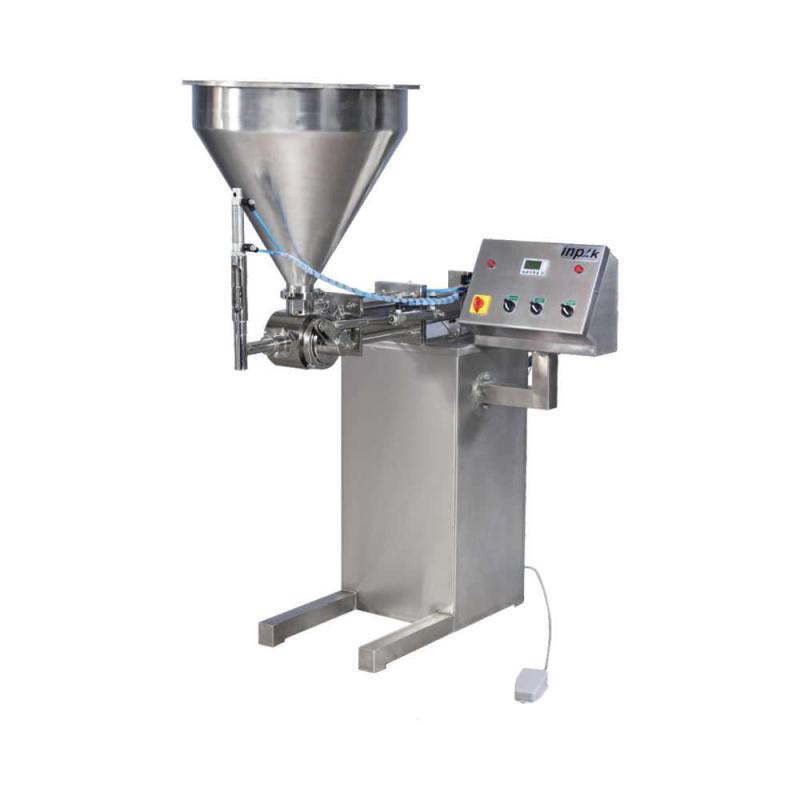

Batter Filling Machine is specially designed for the smooth and hygienic filling of thick and semi-thick food batters such as idli, dosa, vada, cake, or pancake mixes. Built for efficiency and accuracy, it helps food manufacturers.
06 to 20 FPM Depends of the operator speed of fill volume and nature flow of Liquid
Power Characteristics :
240v 1 Phase 50Hz 3 Wire System
Air :
5 to 6 cfm (Customer scope)
Filling System :
Piston filling with pneumatic and L port ball valve
Fill Range :
500 ml, 1000 ml with half of change parts
Filling Accuracy :
± .5 to 1 % Filling accuracy on single dose Depends of the nature of liquid
Tank Storage Capacity :
Overhead tank of 20 to 35 lit. Capacity
Machine Construction :
Stainless steel SS-304 or SS-316 (optional)
Net Weight :
280 kgs
Machine Length :
640mm X 755mm X 1600mm
Technical Specifications
Volumetric Filling system & Nozzle driving System
It is widely used for batter filling and optional of milk, oil, oinment, shampoo, juice, liquor, perfume, wine, food product filling – in Bag, Jar, Can, vial, Bottle, Tub & any Containers.
The unit can be quickly dismantled for the maintenance just by opening front cover
Easy way to clean
Each and every part can be attended for cleaning operation of manitenance without any hindrance
S.S 304 elegantly matt finished body
A unit to fill variety of Liquid and can be used for various type bag or containers.
