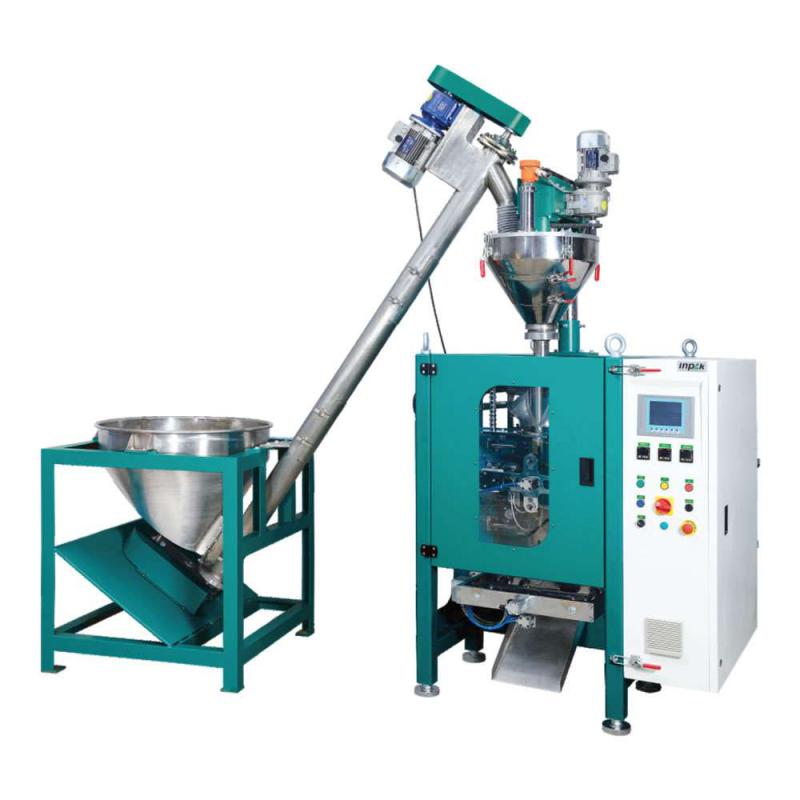

The Automatic Powder Filling Machine with Vertical Form Fill Seal (VFFS) technology is a complete solution for efficiently packaging free-flowing and semi-free-flowing powders into pouches.
Semi / Automatic, or can be integrated with conveyor or form / fill / seal for fully automatic operation
Hopper Capacity :
25 to 35 kgs, depending on application
Construction :
All contact parts SS304 & construction of the machine mild steel with powder coating also available GMP model with sanitary construction.
Machine dimension :
3200 x 1200 x 2400 mm
Cleaning/Changeover Time :
10 minutes or less
Power characteristics :
1ø / 230V / 50hz or 3ø / 415V / N,PE / 50hz
Technical Specifications
Eliminating Clutch/Brake, Belts, and Pulleys.
Advanced design of the Model IP-PFM-500 reduces maintenance by eliminating traditional mechanical components encountered in most auger fillers, such as clutch/brake, belt drive, etc.
The servo drive of the IP-PFM-500 consists of a high performance, permanent magnet, synchronous servo motor and motion control electronics package.
The motor output shaft is coupled in-line with the auger shaft through two radial bearings for direct power transmission to the auger.
Touchscreen or text panel control with 99 product memory
