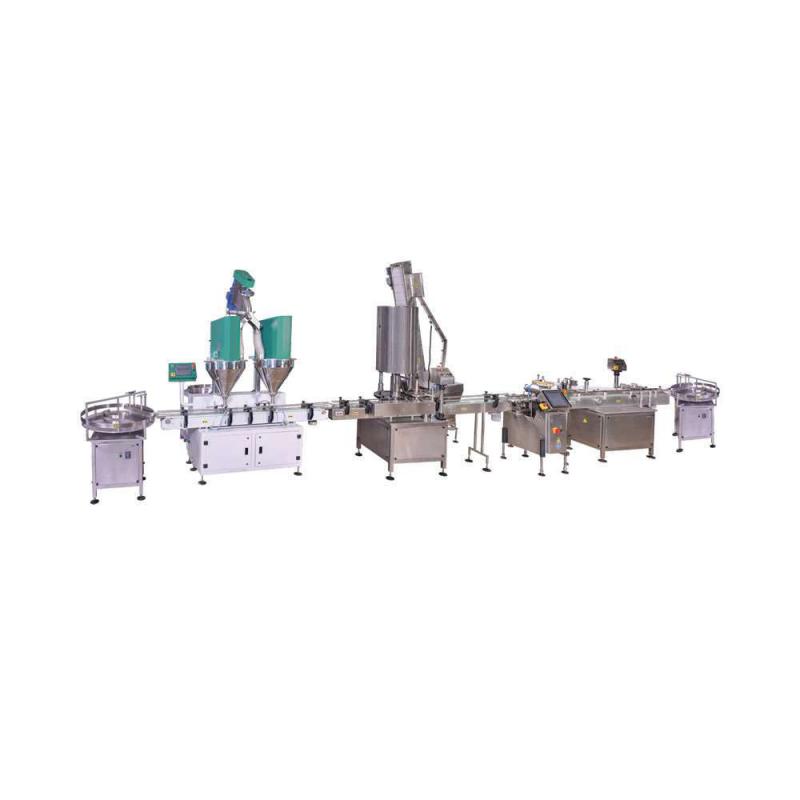

Our Powder Filling Line is an advanced, fully automated system designed to efficiently fill a wide range of powdered products into various containers. Ideal for industries such as food processing, pharmaceuticals, chemicals, and agriculture.
Powders, Granules, Pastes, Frozen and Processed Foods
Fill Speed :
20 – 40 Fills/Minute
Containers Filled :
Bottles,Jars and Boxes
Fill Accuracy :
+/- 0.5 % or better
Fill Range :
50 grams to 1000 grams
Operation :
Automatic mode, or can be integrated with conveyor or form /fill / seal for fully automatic operation
Hopper Capacity :
30 to 35 kgs, depending on application
Constrution :
All contact parts stainless steel 304 construction body of the machine mild steel with powder coated also available GMP model with sanitary construction
Machine dimension :
8000 X 1800 X 2100 mm
Cleaning/Changeover :
10 minutes or less Time
Power Characteristic :
3 ∅ / 415V / N,PE / 50hz / 5 wire system
Technical Specifications
30kgs hoppers with dust proof cover and common in-feed duct
Aluminum head casting with one-piece stainless steel covers
Heavy duty clutch-brakes or servo direct drives
Slow speed agitation
Accepts standard INPAK accessories
Dual 8 foot stainless steel channel Conveyor with variable speed drive and adjustable guide rail
Container lift for bottom-up filling
Adjustable frequency for vibration to settle product in container
Product level control
In-Line Alpha Check Weigher with feedback to filling heads for instantaneous adjustment of filled amounts
Eliminatoin Clutch/Brake, Bells and Pulleys
Advanced design of the Model IP-PFML-500 reduces maintenance by elimination traditional mechanical components encountered in most auger fillers, such as clutch/brake, belt driver etc
The servo drive of the IP-PFML_500 consists of a high performance,permanent magnet, synchronous servo motor and motion control electronic package
The motor output shaft is coupled in-line with the auger shaft through two radial bearings for direct power transmission to the auger
