Attachment Conveyor

Additional Details

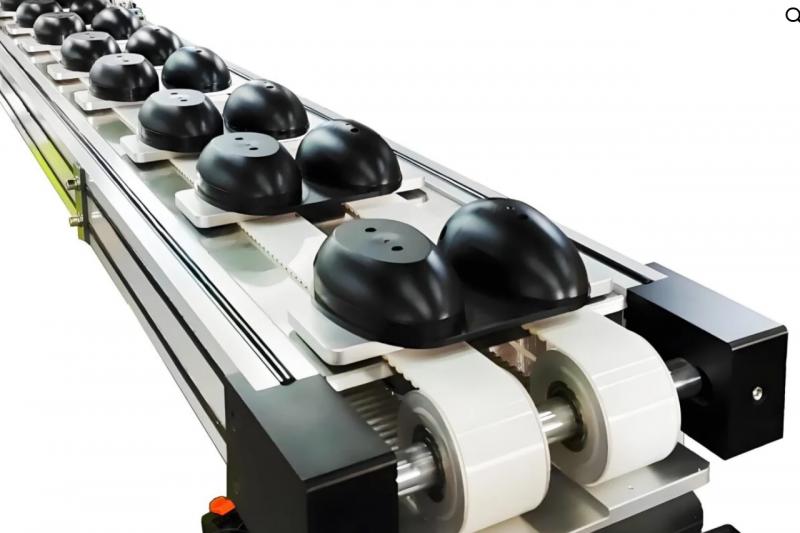

The Attachment Conveyor is a highly efficient and customizable conveyor system powered by a servo motor and timing belt. Designed for high-precision part transfer, it supports customizable pallets/fixtures to match any product geometry. It features self-circulation capability without external lifting mechanisms, minimal noise generation, and no need for physical stoppers—stopping is controlled entirely via motor.

Its timing belt ensures smooth movement with no relative motion between the pallet and transfer medium, reducing wear and contamination risk—making it ideal for cleanroom or precision assembly environments.

Technical Specifications

• Conveyor Medium: Timing Belt

• Length: 2000–6000 mm

• Speed Options: 6 / 9 / 12 / 15 / 18 m/min

• Max Load: 150 kg

• Drive: Servo Motor + Gear Reducer

• Stopping Mechanism: Motor-Controlled Stop

• Stop Accuracy: ±2 mm (±0.5 mm with extra positioning unit)

• Noise & Debris: Low particle generation, low noise

• Pallet Movement: Circulates continuously without lifter

Applications

• Electronics assembly

• Battery pack and module lines

• Precision testing and inspection stations

• Cleanroom manufacturing

• Packaging automation

• Any high-speed, stop-position-critical conveyor applications
