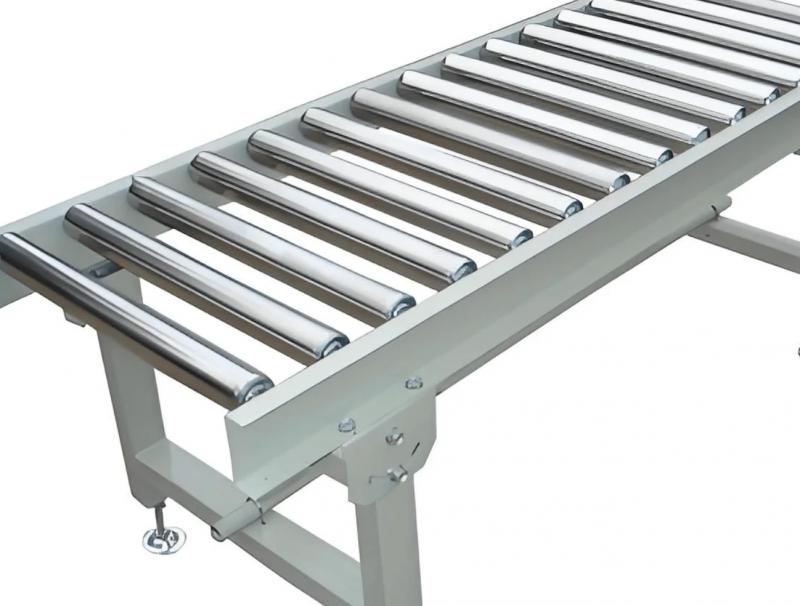

Roller Conveyor

Additional Details

This Roller Conveyor line combines durability and flexibility for a variety of industries. Customize it as gravity-driven or motor-powered—using V‑belt or brushless DC motor-driven rollers—for smooth, reliable flow. Heavy-duty versions support pallets and large crates, while powered options offer precise control and zone-based automation . Ideal for warehouses, packaging lines, assembly, and parcel handling.

Technical Specifications

• Roller Diameter: 50 mm, 63.5 mm, 75 mm, or 1.9″

• Roller Pitch: Customizable 60–100 mm

• Length Options: Modular sections from 1 m up to 20 m


• Width Options: 300–1500 mm (usable width)


• Drive Options:

  • Gravity: No power, relies on slight incline


  • Motorized Roller (MDR): BLDC drive handling up to 35 kg per zone


  • Heavy-Duty Belt-Driven: Handles up to 440 kg pallets, modular


• Frame Materials: CRC steel sheet powder-coated or aluminum extrusion


• Accessories: Side guides, support stands, bends, turntables, stops, guard rails

Applications

• Order fulfillment & parcel sorting

• Assembly line part transfers

• Packaging & palletizing systems

• Heavy load handling (pallets up to 440 kg)

• Warehousing gravity-flow sections
