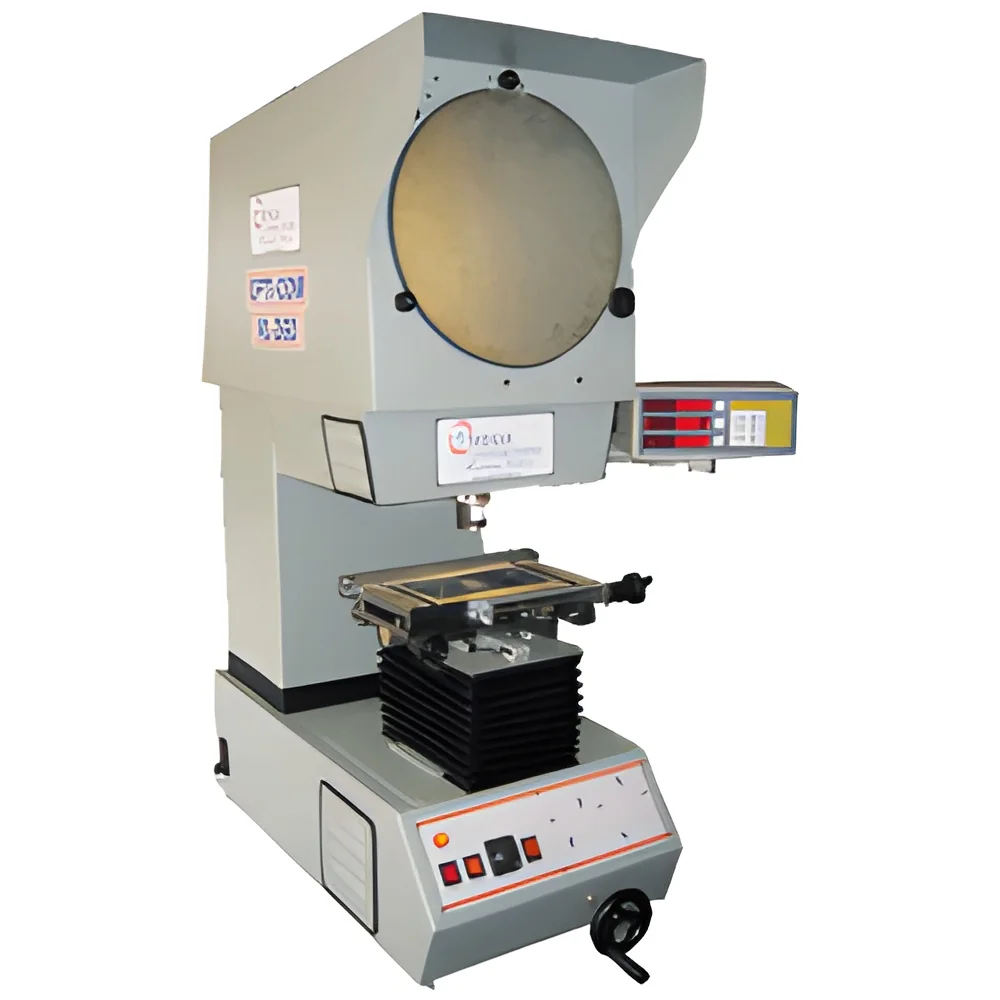

The Industrial Quality Control Vertical Screen Profile Projector represents advanced optical metrology technology engineered for precision measurement applications in industrial settings. This sophisticated instrument projects magnified component silhouettes onto a vertical viewing screen, enabling operators to perform accurate dimensional inspections without physical contact with parts. The system incorporates high-resolution optics that deliver sharp, clear images essential for detecting minute defects and measuring complex geometries with exceptional accuracy. Built to withstand demanding manufacturing environments, it features robust construction that maintains calibration stability through continuous operation while resisting vibration and environmental variations. The vertical orientation provides significant ergonomic advantages by allowing natural viewing positions and minimizing operator strain during extended quality control sessions, ensuring consistent measurement performance throughout the workday.

Multiple manufacturing sectors utilize this profile projector for critical quality assurance processes where precision is paramount. Automotive manufacturers rely on it for inspecting transmission components, gear teeth profiles, and engine parts where exact tolerances are mandatory for proper function. Aerospace companies employ these systems for measuring turbine blades, structural components, and precision fittings that must meet rigorous safety and performance standards. Electronics manufacturers benefit from its capability to verify PCB layouts, component placement accuracy, and micro-part dimensions with exceptional precision. The tool and die industry uses these projectors for mold verification, cutter alignment, and template matching applications where dimensional accuracy directly impacts production quality and manufacturing efficiency across various production cycles.

Businesses implementing this vertical profile projector achieve significant operational advantages through enhanced quality control efficiency and substantial reduction in measurement errors. The non-contact measurement capability eliminates part damage during inspection while providing consistent, repeatable results across multiple operators and shifts. The system's durable construction ensures long-term reliability with minimal maintenance requirements, delivering excellent return on investment through reduced scrap rates, improved product quality, and decreased rework costs. The equipment's design focuses on user-friendly operation while maintaining precision measurement capabilities, making it suitable for both experienced metrology professionals and trained production staff. This combination of reliability and precision makes the system ideal for high-volume production environments as well as specialized manufacturing applications requiring exact dimensional verification.

Key Features:
- High-resolution optical system delivering superior image clarity for precise measurements
- Sturdy vibration-resistant construction ensuring stability in industrial environments
- Vertical screen orientation providing ergonomic viewing and reduced operator fatigue
- Integrated precision measurement scales with optional rotary staging capabilities
- Advanced lighting configurations optimized for various material types and surface finishes

Benefits:
- Enhanced measurement accuracy reducing production errors and improving quality control
- Durable construction ensuring long-term reliability with minimal maintenance requirements
- Ergonomic design reducing operator fatigue and improving inspection consistency
- Non-contact measurement preserving delicate component surfaces during inspection
- Versatile application across multiple industries and component types for comprehensive quality assurance
