Description

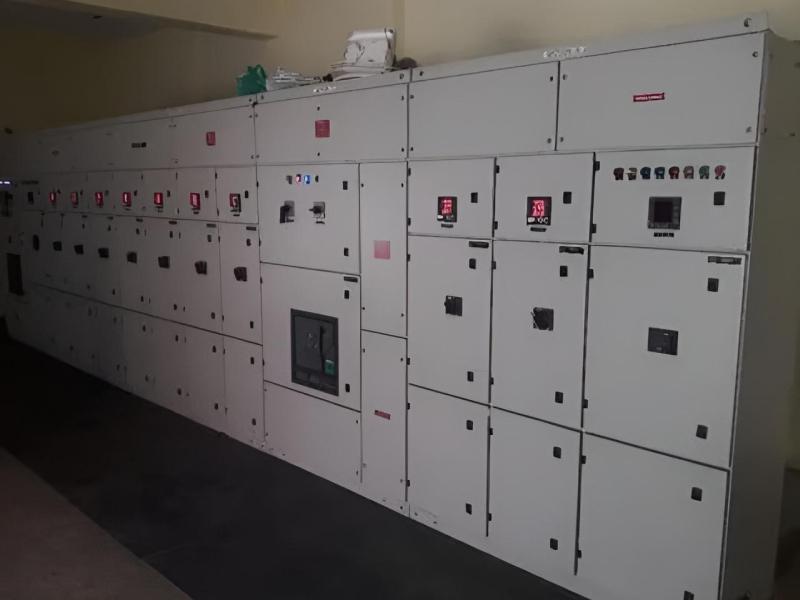

The MV Panel Board is specifically designed for medium voltage industrial applications, ensuring efficient distribution and control of electrical power. This robust solution is essential in various settings such as industrial plants, utilities, and infrastructure projects. • Voltage Rating: 11 kV, suitable for high-demand environments. • Current Rating: 1250 A, allowing substantial load handling capabilities. • Protection Class: IP55 ensures dust ingress protection and water resistance under certain conditions. • Short Circuit Withstand Capacity: 31.5 kA for enhanced fault tolerance and safety measures. This floor-mounted panel operates with a frequency of 50 Hz within an operating temperature range of -10°C to +55°C, accommodating diverse operational conditions. The MV Panel Board not only improves electrical reliability but also enhances safety through built-in circuit breakers and protection relays. This product presents a critical procurement choice for businesses looking to upgrad...
The MV Panel Board is specifically designed for medium voltage industrial applications, ensuring efficient distribution and control of electrical power. This robust solution is essential in various settings such as industrial plants, utilities, and infrastructure projects. • Voltage Rating: 11 kV, suitable for high-demand environments. • Current Rating: 1250 A, allowing substantial load handling capabilities. • Protection Class: IP55 ensures dust ingress protection and water resistance under certain conditions. • Short Circuit Withstand Capacity: 31.5 kA for enhanced fault tolerance and safety measures. This floor-mounted panel operates with a frequency of 50 Hz within an operating temperature range of -10°C to +55°C, accommodating diverse operational conditions. The MV Panel Board not only improves electrical reliability but also enhances safety through built-in circuit breakers and protection relays. This product presents a critical procurement choice for businesses looking to upgrade their electrical infrastructure with reliable medium voltage solutions.
Specifications
| Attribute | Value |
|---|---|
| Voltage Rating | 11 kV |
| Current Rating | 1250 A |
| Protection Class | IP55 |
| Frequency | 50 Hz |
| Short Circuit Withstand Capacity | 31.5 kA |
| Mounting Type | Floor Mounted |
| Operating Temperature | -10°C to +55°C |
| Phase | 3 Phase |
| Additional Information | |
|---|---|
| Country of Origin | India |
| Customisable | No |
Application
The MV Panel Board is engineered for medium voltage industrial applications, providing efficient power distribution and control solutions. Designed to operate at a voltage rating of 11 kV and current ratings of up to 1250 A, this panel ensures robust performance in various demanding environments. It features an IP55 protection class suitable for harsh conditions and operates reliably within temperatures ranging from -10°C to +55°C.
• Ideal for industrial plants requiring reliable electrical distribution
• Suited for utilities managing energy supply systems
• Commonly utilized in infrastructure projects needing fault isolation and circuit protection
This medium voltage panel board is equipped with essential components such as circuit breakers, protection relays, busbars, and metering devices that ensure safe operation while facilitating ease of maintenance.
Trade Details
| Production Lead Time | 8-14 Days |
| Available Stock | In Stock |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms | ||
| Port of Dispatch | ||
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | -- | |
| Dispatch Lead time | Ships in 14+ Days |
Company Profile
Electro Power System, Tamil Nadu
Tamil Nadu, India
Tamil Nadu, India30 yrs
Manufacturer
Main Markets
India
Frequently Asked Questions
1
What is the MV Panel Board used for?
The MV Panel Board is designed for medium voltage industrial applications, providing reliable power distribution and control in various electrical systems.
2
Can this panel board handle outdoor installations?
Yes, the MV Panel Board can be suitable for outdoor installations depending on specific environmental conditions. It's important to check for proper enclosure ratings and installation guidelines based on your application.
3
What types of industries typically use MV Panel Boards?
MV Panel Boards are commonly used in industries such as manufacturing, oil and gas, water treatment plants, mining, and renewable energy facilities due to their capability to manage medium voltage electrical systems.
4
Are there any maintenance requirements for the MV Panel Board?
Regular maintenance checks are recommended to ensure optimal performance. This includes inspecting connections, cleaning components, and ensuring that safety devices are functioning properly.
5
What payment methods do you accept for purchasing the MV Panel Board?
We accept various forms of payments categorized under 'others'. Please refer to our payment policy or contact customer support for detailed information on accepted methods.
MV Panel Board Medium Voltage Industrial Applications
The MV Panel Board (Medium Voltage Panel Board) is used to distribute and control electrical power at medium voltage levels in industrial plants, utilities, and infrastructure projects. It houses circuit breakers, protection relays, busbars, and metering devices to ensure safe operation and fault isolation.
