Description
The IPMB-15 from RB Technologies is a rugged 15-inch industrial display monitor developed for panel-mounted control and visualization systems. Its LED-backlit LCD delivers 1024 × 768 resolution, 450 cd/m² brightness and a 700:1 contrast ratio. The monitor incorporates a 6mm aluminum front bezel with protective glass and IP65 front protection for industrial environments. Standard connectivity includes DVI-D, VGA and audio input, while built-in 2 × 2W stereo speakers provide integrated audio capability. Front OSD control buttons allow convenient display adjustment. It supports panel flush mounting with clips and standard VESA mounting for desk stands, wall mounts or swing arms
Specifications
| Attribute | Value |
|---|---|
| Screen Size | 15″ |
| Backlight Type | LED |
| Resolution | 1024 × 768 |
| Contrast Ratio | 700:01:00 |
| Brightness | 450 cd/m² |
| Viewing Angle | 160° (H) / 140° (V) |
| Pixel Size | 0.297 × 0.297 mm |
| Maximum Colors | 16.7M |
| MTBF | 5,000 Hours |
| Packing Dimensions | 480 × 420 × 200 mm |
| Net Weight | 5.5 kg |
| Gross Weight | 8 kg |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | ||
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | ||
| Dispatch Lead time | Ships in 7 Days |
Company Profile
RB Technologies, Tamil Nadu
9 yrs
Manufacturer•Retailer
Factory Details
Factory Size1000-5000 sqm
Frequently Asked Questions
1
What is the display resolution of the IPMB-15?
The IPMB-15 features a 15-inch LED-backlit display with 1024 × 768 resolution, 450 cd/m² brightness and a 700:1 contrast ratio
2
What input interfaces does the IPMB-15 support?
Standard inputs include DVI-D, VGA and audio. Optional interfaces include HDMI or DisplayPort, composite video, BNC loop-in/out and 3G/HD/SD-SDI.
3
Is a touchscreen available with the IPMB-15?
Yes. RB Technologies lists touchscreen functionality as an optional feature, with USB or RS232 touch connectivity options.
4
What other products are available in this range?
Additional available products include IPMB-17, IPMB-21W, RBT DM-F08A, RBT DM-F12A, RBT DM-F15A and RBT DM-F17A.
SKU: 1

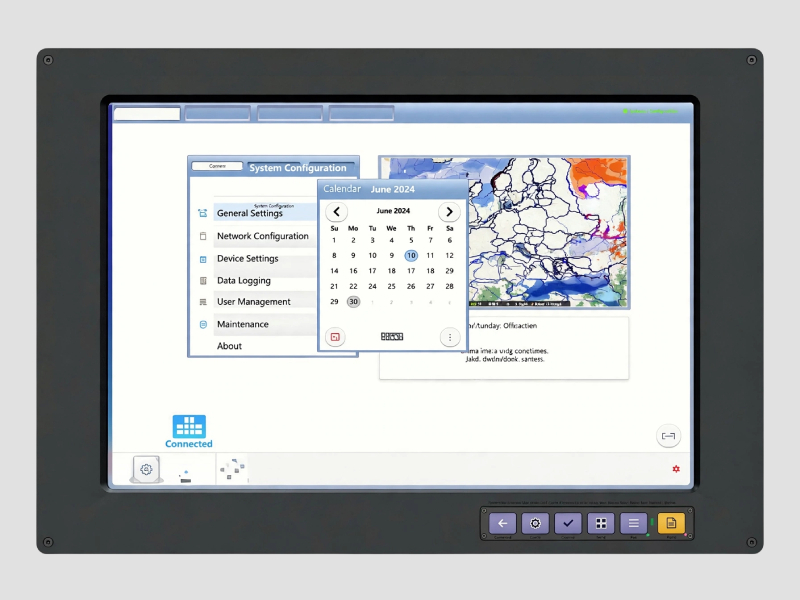

IPMB-15 – 15” Panel Mount Industrial Display Monitor
The 15-inch industrial monitor features a 1024×768 display with a durable 6mm aluminum front bezel and hardened glass protection. Its NEMA4/IP65-compliant front bezel supports reliable operation in demanding environments. It includes DVI-D, VGA, audio input, front OSD controls, built-in 2×2W stereo speakers, flush panel mounting, and VESA-compatible desk, wall, and swing-arm mounting. Optional features include composite video, BNC loop-in/out, HDMI/DisplayPort, 3G/HD/SD-SDI, DC 9–36V input, AR glass, and touchscreen functionality.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
