Description

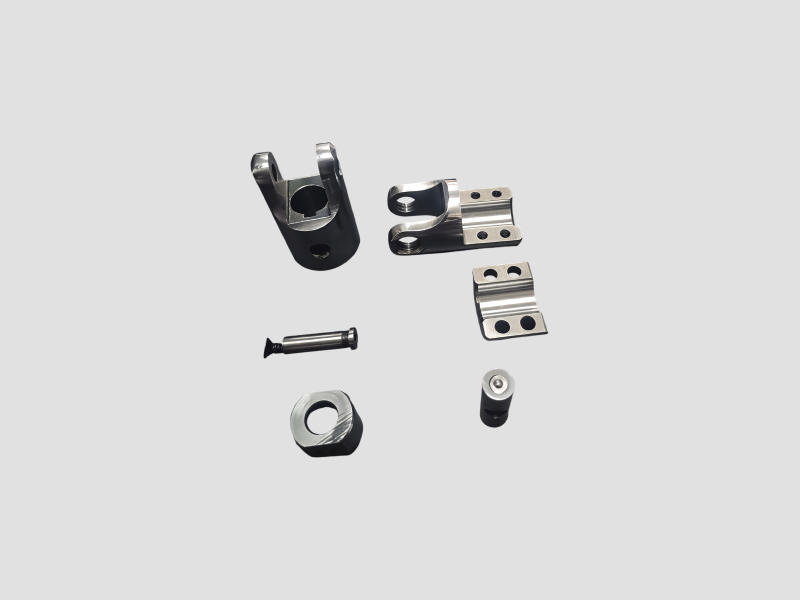

The Joint Coupling Assembly is a high-strength mechanical kit engineered for seamless power transmission between misaligned shafts. Featuring a precision-machined yoke, pivot pin, and split-flange plates, it is crafted from high-tensile alloy steel to withstand heavy torque loads. Its modular design allows for smooth rotational movement at varying angles while ensuring a secure, vibration-resistant connection.
Specifications
| Attribute | Value |
|---|---|
| Product | Joint Coupling Assembly |
| Material | High-Tensile Alloy Steel |
| Components | Yoke, Pin, Flanges, Retainers |
| Machining | Precision CNC Turned & Milled |
| Function | Angular Torque Transmission |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Industrial Machinery: Connecting drive shafts in conveyors and manufacturing lines.
Automotive: Used in steering columns and drivetrain U-joint assemblies.
Agricultural Equipment: Linking power take-off (PTO) shafts on tractors and harvesters.
Robotics: Providing flexible joint movement in automated arm linkages.
Aerospace: Facilitating mechanical control linkages in flight systems.
Trade Details
| Production Lead Time | 4-7 Days |
| Available Stock | In Stock |
| Production Capacity | 1 pieces/ monthly |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | ||
| Dispatch Lead time | Ships in 7 Days |
Company Profile
Surya Machine Works, Tamil Nadu
12 yrs
Manufacturer
Turn Over
₹1 Crore – ₹5 Crore
Factory Details
Factory SizeAbove 5000 sqm
Main Markets
India
Frequently Asked Questions
1
1. What is the main purpose?
It connects two shafts to transmit rotational power and torque, even when they are at an angle.
2
2. What parts are included?
The assembly typically includes a yoke, a pivot pin, split-flange plates, and necessary fasteners.
3
3. Is it durable?
Yes, it is made from high-tensile alloy steel to resist wear, friction, and high-stress industrial loads.
4
4. Can it handle misalignment?
Yes, the universal joint design allows for smooth rotation between shafts that are not perfectly aligned.
5
5. How is it maintained?
The modular design allows for easy lubrication and the replacement of individual pins or flanges without replacing the whole unit.
SKU: 1
Joint Coupling Assembly 3
A precision Joint Coupling Assembly designed for torque transmission between shafts. Machined from high-strength alloy steel, this kit includes a yoke, pivot pin, and mounting plates to facilitate smooth mechanical rotation at varying angles.
Min. Order Quantity: 1 piece
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
Shipping InternationallyNo
Estimated Delivery11 - 14 business days
