Description

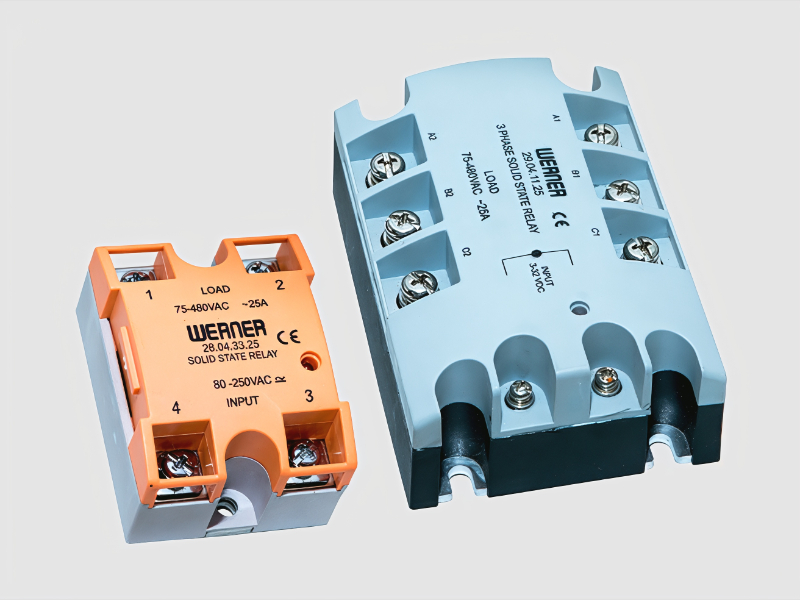

The 28/29 Series Solid State Relays (SSR) are designed for high-performance switching applications in various electronics and electrical settings. These relays utilize semiconductor technology to provide reliable control over a wide input and output voltage range, making them suitable for diverse industrial requirements. • Input Voltage: 3V DC – 32V DC ensures compatibility with low-voltage control systems. • Output Voltage: Ranges from 24V AC to 480V AC, providing flexibility for different load types. • Output Current Ratings between 10A and 100A accommodate various operational needs. • Switching Type options include Zero Crossing and Random Turn-On, enhancing circuit protection and efficiency in operation. The 28/29 Series SSRs are ideal for panel mounting or DIN rail installation, making them versatile within industrial environments. Suitable for procurement, these relays meet RoHS standards and are CE marked, ensuring compliance with industry regulations. Variants are available bas...
The 28/29 Series Solid State Relays (SSR) are designed for high-performance switching applications in various electronics and electrical settings. These relays utilize semiconductor technology to provide reliable control over a wide input and output voltage range, making them suitable for diverse industrial requirements. • Input Voltage: 3V DC – 32V DC ensures compatibility with low-voltage control systems. • Output Voltage: Ranges from 24V AC to 480V AC, providing flexibility for different load types. • Output Current Ratings between 10A and 100A accommodate various operational needs. • Switching Type options include Zero Crossing and Random Turn-On, enhancing circuit protection and efficiency in operation. The 28/29 Series SSRs are ideal for panel mounting or DIN rail installation, making them versatile within industrial environments. Suitable for procurement, these relays meet RoHS standards and are CE marked, ensuring compliance with industry regulations. Variants are available based on specific application requirements.
Specifications
| Attribute | Value |
|---|---|
| Voltage Rating | 0 V, 150 V, 300 V, 450 V, 600 V |
| Current Rating | 0 A, 25 A, 50 A, 75 A, 100 A |
| Control Voltage Range | 3 V, 10.25 V, 17.5 V, 24.75 V, 32 V |
| Certifications | CE, UL, ISO, BIS, RoHS |
| Package Type | DIP, SMD, Module, Thyristor, Relay Board |
| Product Type | Solid State Relay (SSR) |
| Series | 28/29 Series |
| Relay Type | Semiconductor Switching Relay |
| Input Voltage | 3V DC – 32V DC |
| Output Voltage | 24V AC – 480V AC |
| Output Current Rating | 10A – 100A |
| Switching Type | Zero Crossing / Random Turn-On |
| Mounting Type | Panel Mounted / DIN Rail Mounted |
| Additional Information | |
|---|---|
| Country of Origin | India |
| Customisable | No |
Application
Trade Details
| Production Lead Time | 8-14 Days |
| Available Stock | In Stock |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | 11111 | |
| Dispatch Lead time | Ships in 10 Days |
Frequently Asked Questions
What is a solid state relay and how does it work?
A solid state relay (SSR) is an electronic switching device that controls power to an electrical load without any moving parts. Instead of mechanical contacts, SSRs use semiconductor devices to switch the load on or off. They provide faster switching speeds, greater durability, and reduced noise compared to electromechanical relays.
What are the main applications for the 28/29 Series Solid State Relays?
The 28/29 Series Solid State Relays are typically used in various applications such as temperature control systems, industrial automation, lighting control, and motor control. They are ideal for environments where reliability and long life are essential.
Can I use these solid state relays with different voltage levels?
Yes, the 28/29 Series Solid State Relays can be designed to handle various AC or DC voltage levels. However, it’s important to verify the specific model's specifications to ensure compatibility with your application requirements.
Are there any special installation requirements for these relays?
Installation typically requires basic electrical knowledge. Ensure proper heat sinking if needed for high current loads and follow manufacturer guidelines regarding wiring practices to avoid damage.
What type of payment do you accept for purchasing these solid state relays?
We only accept cash payments for purchasing the 28/29 Series Solid State Relays at this time.
28/29 Series Solid State Relays
Shipping
Shipping fee and delivery date to be negotiated. Contact supplier now for more details.
