Description

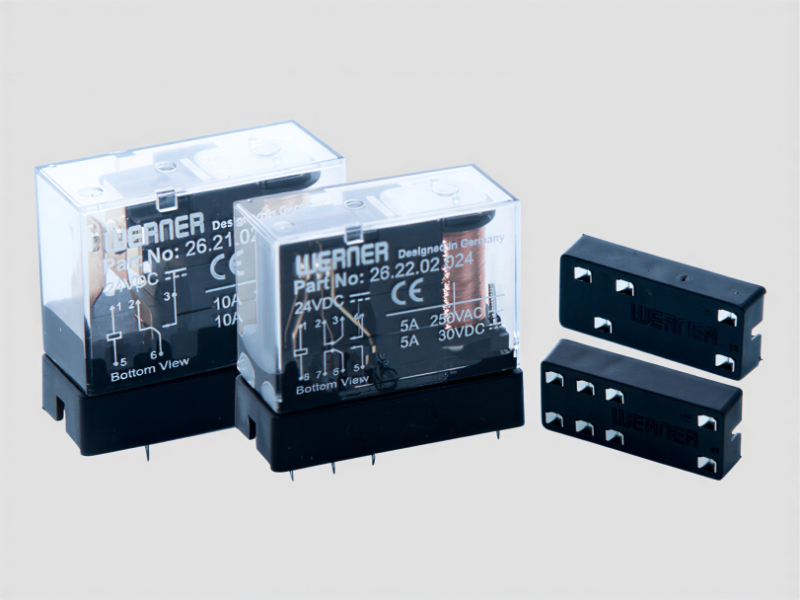

The 26 Series Relays & Switches are essential components designed for precise control within various industrial applications. These electromechanical devices function as critical control elements, ensuring reliability and efficiency in electronic systems. • Contact configurations include SPDT and DPDT options, catering to diverse circuit requirements. • The series supports coil voltages of 12V DC, 24V DC, 48V DC, 110V AC, and 230V AC for versatile operational capabilities. • Rated for continuous current up to 16A, these relays provide durable performance across demanding environments while offering a lifecycle exceeding one million operations. The mounting options include both DIN rail and panel-mounted installations for convenience in various setups. With certification standards such as UL and CE approval, the 26 Series is ideal for procurement considerations focused on quality and compliance in industrial control solutions.
Specifications
| Attribute | Value |
|---|---|
| Voltage Rating | 0 V, 125 V, 250 V, 375 V, 500 V |
| Current Rating | 0 A, 2.5 A, 5 A, 7.5 A, 10 A |
| Contact Configuration | SPST, DPST, SPDT, DPDT, . . ., SPDT / DPDT / Multi Contact Options |
| Operating Temperature Range | 5 °C, 17.5 °C, 30 °C, 42.5 °C, 55 °C |
| Certifications | CE, ISO, BIS, UL, RoHS |
| Product Type | Relays & Switches |
| Series | 26 Series |
| Device Type | Industrial Control Device |
| Relay Type | Electromagnetic Relay |
| Switch Type | Control & Switching Device |
| Coil Voltage | 12V DC, 24V DC, 48V DC, 110V AC, 230V AC |
| Contact Rating | 5A – 16A |
| Mounting Type | DIN Rail / Panel Mounted |
| Additional Information | |
|---|---|
| SKU | 1 |
| Country of Origin | India |
| Customisable | No |
Application
Trade Details
| Production Lead Time | 8-14 Days |
| Available Stock | In Stock |
| Sample Availability | No |
Shipping & Logistics
| Shipping Internationally | No | |
| Methods |
| |
| IncoTerms |
| |
| Port of Dispatch | -- | |
| Packaging Type | -- | |
| Units per Package | -- | |
| Barcode / HSN / GTIN / UPC | 11111 | |
| Dispatch Lead time | -- |
Frequently Asked Questions
What are the main features of the 26 Series Relays & Switches?
The 26 Series Relays & Switches offer robust switching capabilities, high reliability, and compact designs suitable for various electronic applications. They support different voltage ratings and have a wide operating temperature range.
Are the 26 Series Relays & Switches suitable for both AC and DC applications?
Yes, the 26 Series can be used in both AC and DC applications, making them versatile components for many electrical projects.
Do I need any special tools to install the 26 Series Relays & Switches?
Basic tools such as screwdrivers and wire strippers are typically sufficient for installation. Ensure you follow standard electrical wiring practices during setup.
What is the maximum load capacity of these relays?
The maximum load capacity varies depending on the specific model within the 26 Series. Please refer to the product specifications for detailed load ratings.
How do I ensure compatibility with my existing electronic systems?
To ensure compatibility, check that your system's voltage, current standards, and switching types align with those specified for the 26 Series Relays & Switches before purchase.
