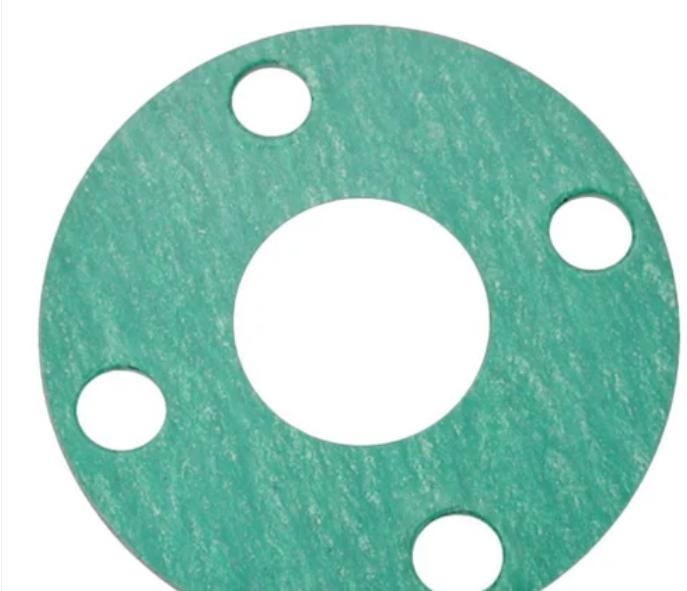

Non Asbestos Gasket Sheet

Additional Details

Compressed Non-Asbestos Gasket Sheets are a superior substitute to conventional asbestos sheets, designed to comply with modern safety and environmental standards. They are manufactured using a blend of synthetic fibers, natural rubber, filler materials, and performance-enhancing dyes.

The sheets are calendered under high temperature and pressure to achieve excellent strength, elasticity, and sealing capability. They are ideal for flanges, pipe joints, chemical processing, and other industrial applications requiring high pressure and temperature resistance.

These sheets completely eliminate the health hazards associated with asbestos, making them a safe choice for workers and the environment.

Technical Specifications

• Material Composition: Synthetic fibers, natural rubber, fillers

• Color: Green / Blue / Black (varies as per grade)

• Tensile Strength: ≥ 10 MPa

• Compressibility: 7–17%

• Recovery: ≥ 45%

• Max Temperature Resistance: Up to 350°C

• Max Pressure Resistance: Up to 100 bar

• Available Thickness Range: 0.5 mm – 6 mm

• Sheet Sizes: Standard 1500 mm x 1500 mm / 1500 mm x 3000 mm

Applications

• Sealing in pipeline flanges and joints

• Chemical and petrochemical industries

• Marine and shipping components

• Steam and water systems

• Pump and valve gaskets

• Power plant and boiler applications

• Automotive engines
