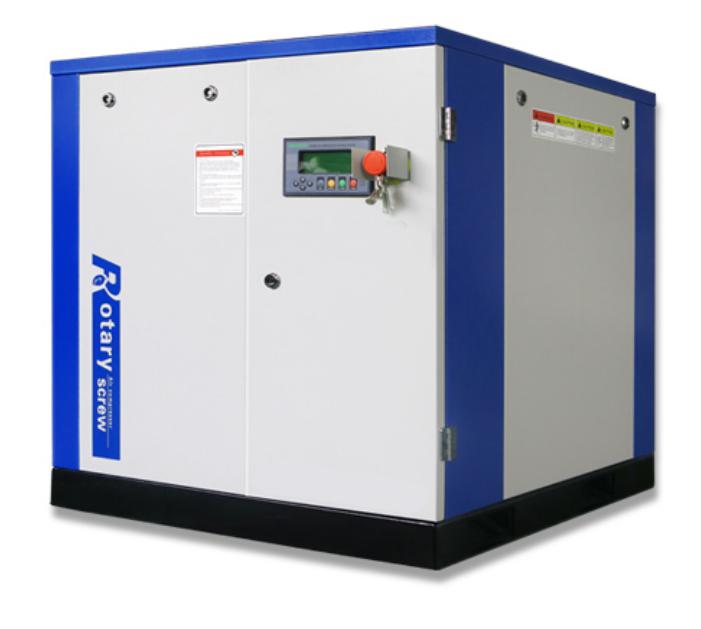

Direct Drive Transmission Screw Air Compressor

Additional Details

A Direct Drive Transmission Screw Air Compressor is engineered for energy efficiency and low maintenance. Its beltless design ensures minimal mechanical loss and longer lifespan. By directly connecting the motor to the screw element, this compressor reduces energy consumption and improves reliability. Ideal for demanding environments such as automotive, packaging, pharmaceuticals, textiles, and construction industries, the compressor delivers a stable air output with minimal vibration and noise.

Key Features:

• Direct drive system for maximum power transfer

• Energy-efficient screw compression technology

• Compact, low-noise operation

• Minimal maintenance due to beltless design

• Suitable for continuous and heavy-duty industrial use

• Optional VFD (Variable Frequency Drive) models available

Technical Specifications

• Drive Method: Direct Drive

• Motor: 7.5 HP / 10 HP / 15 HP (customizable)

• Pressure Range: 7 – 13 Bar

• Flow Capacity: 120 – 600 CFM

• Cooling Type: Air / Oil Cooled

• Power Source: Electric – 3 Phase, 415V, 50Hz

• Noise Level: <70 dB

• Lubrication: Oil-Injected (default)

• Frame: Enclosed industrial body, MS material

• RPM: 2900 RPM (Approx.)

Applications

• Manufacturing Plants

• Garment/Textile Production

• Automotive Service and Assembly

• Pharmaceutical & Packaging

• CNC Machining and Tool Shops

• Food & Beverage Plants (with oil-free variant)
